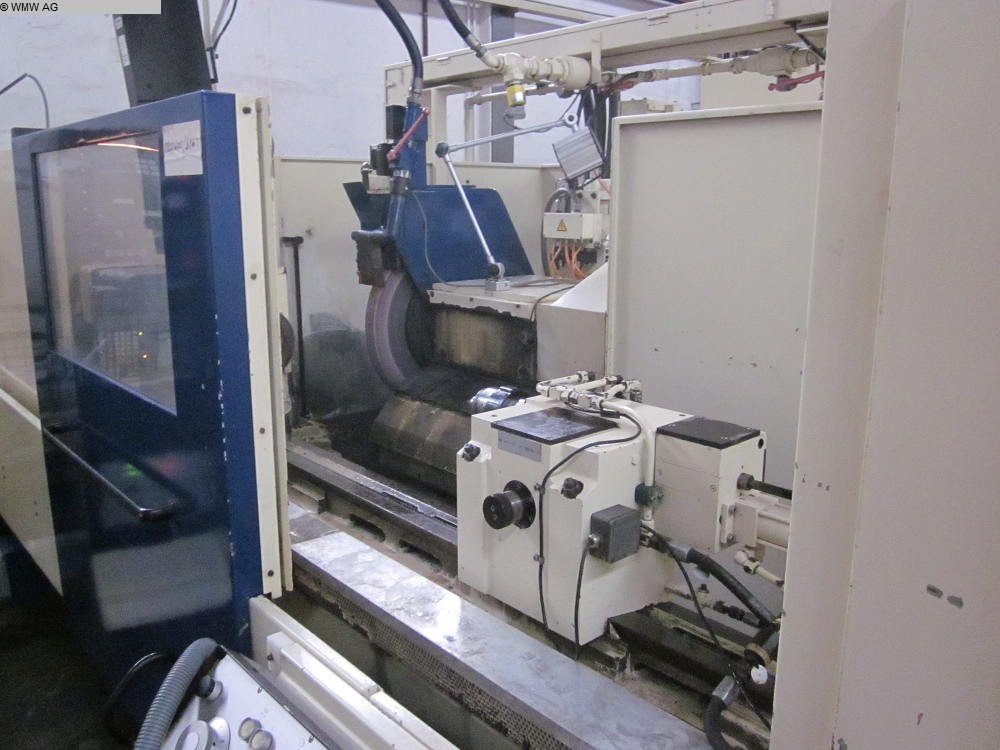

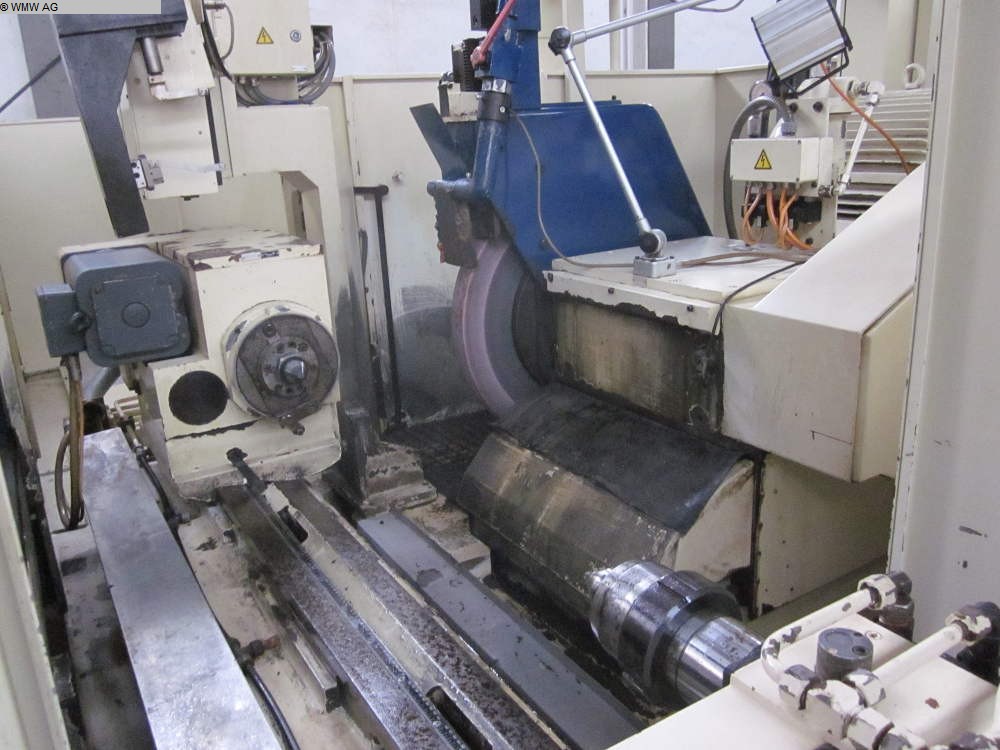

Cylindrical Grinding Machine
Offer
- stock-no.:
- 0800605
- type of machine:
- Cylindrical Grinding Machine
- make:
- SCHAUDT
- model:
- PF5N2000
- year of manufacture:
- 1992
- type of control:
- CNC
- country of origin:
- Germany
- freight basis:
- EXW, free on truck
- storage location:
- Leipzig 4
- delivery time:
- 2 - 3 days
- price:
- on request
technical details
- grinding diameter:
- 460 mm
- grinding length:
- 2000 mm
- centre height:
- 250 mm
- control:
- S 3G-4C Siemens
- grinding wheel hole diameter:
- Aufnahme: Ø 304,8 mm
- swing diameter:
- 500 mm
- workpiece weight:
- zw.Spitzen: 600 kg
- total power requirement:
- 53 kVA
- weight of the machine ca.:
- 8,5 t
- space requirements of the machine approx.:
- L:7,5xB:5,4xH:2,3 m
additional information
applicable for manufacturing of rolls and conical grinding possible
further details:
grinding headstock: diameter speed 45m/s, travel x= 425, fixed
grinding disc intake : drill hole 304,8mm
workpiece headstock: rpm 8 - 560 U7min, slideable on table m center tip intake MK5
- work slide with table : travel z= 2000mm, rapid traverse 10.000 mm/min.
equipment:
- dressing device
- balancing automatic
- measuring device DIATRONIK 2 diameter measuring in longitudinal align during grinding process
- tailstock MK5 , quill stroke 50mm
Machine can be demonstrated under power.
