Universal Milling Machine TOS FNGJ 32

Offer

stock-no.:

0400487

type of machine:

Universal Milling Machine

make:

TOS

model:

FNGJ 32

year of manufacture:

1993

type of control:

other

country of origin:

Czech Republic

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

x-travel:

600 mm

y-travel:

400 mm

z-travel:

400 mm

range of revolution per miute:

63 - 3150 / 18 step U/min

max. torque on milling spindle:

500 Nm

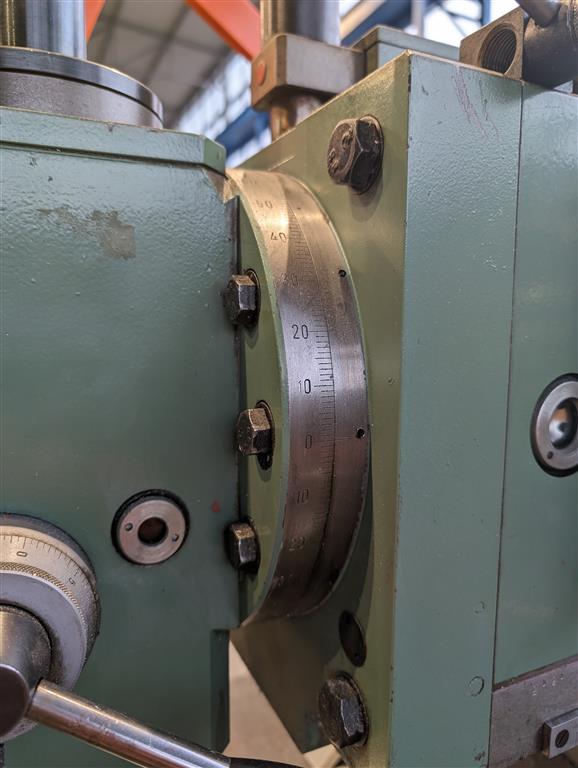

spindle head swivable left - right:

90° °

quill stroke vertical:

Spindelstock: 95 mm

tool taper:

SK 40

feed steps:

18

milling feed range:

X/Y: 8 - 400 mm/min

milling feed range:

Z: 4 - 200 mm/min

clamping surface area:

Tisch: 510 x 356 mm

total power requirement:

ca. 6,5 kW

weight of the machine ca.:

2,2 t

dimension machine approx.LxWxH:

2,0 x 1,7 x 2,0 m

additional information

Spindle in clockwise and counter-clockwise rotation
Manual tool clamping
End position switch-off

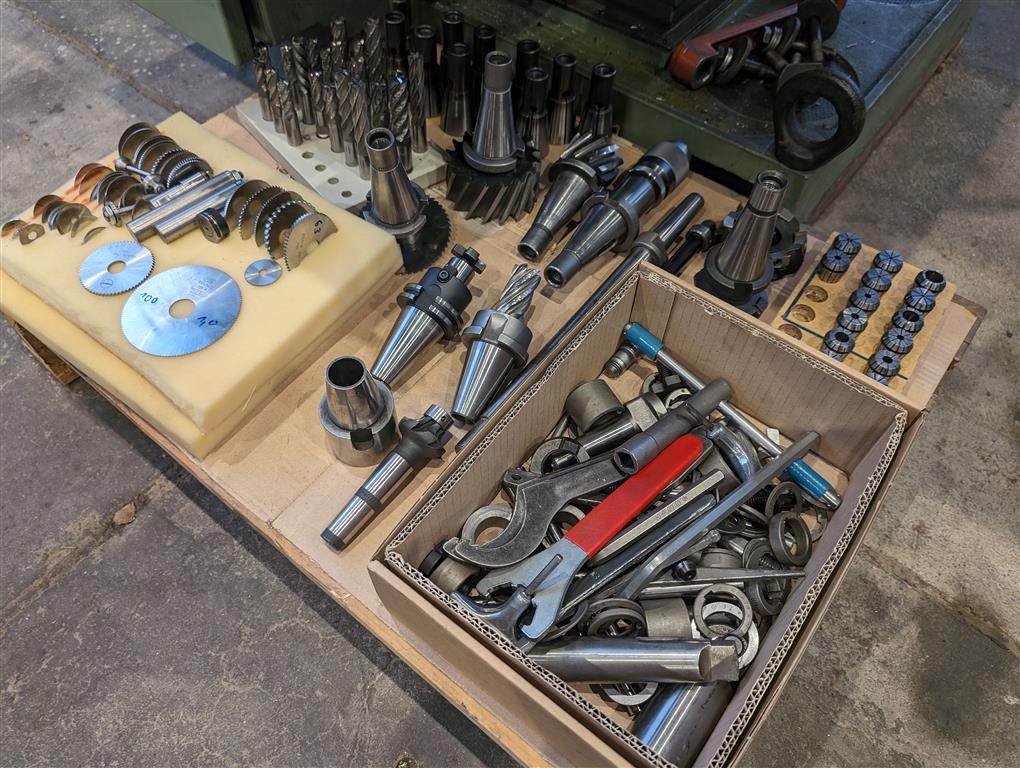

Equipment:
- Clamping cartridge built into the headstock
- digital 3-way measuring system Heidenhain

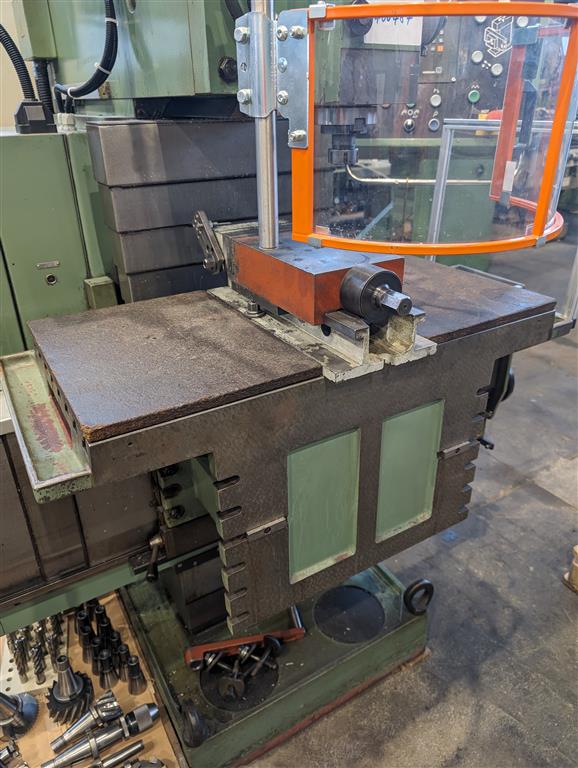

- fixed angle table
- coolant system

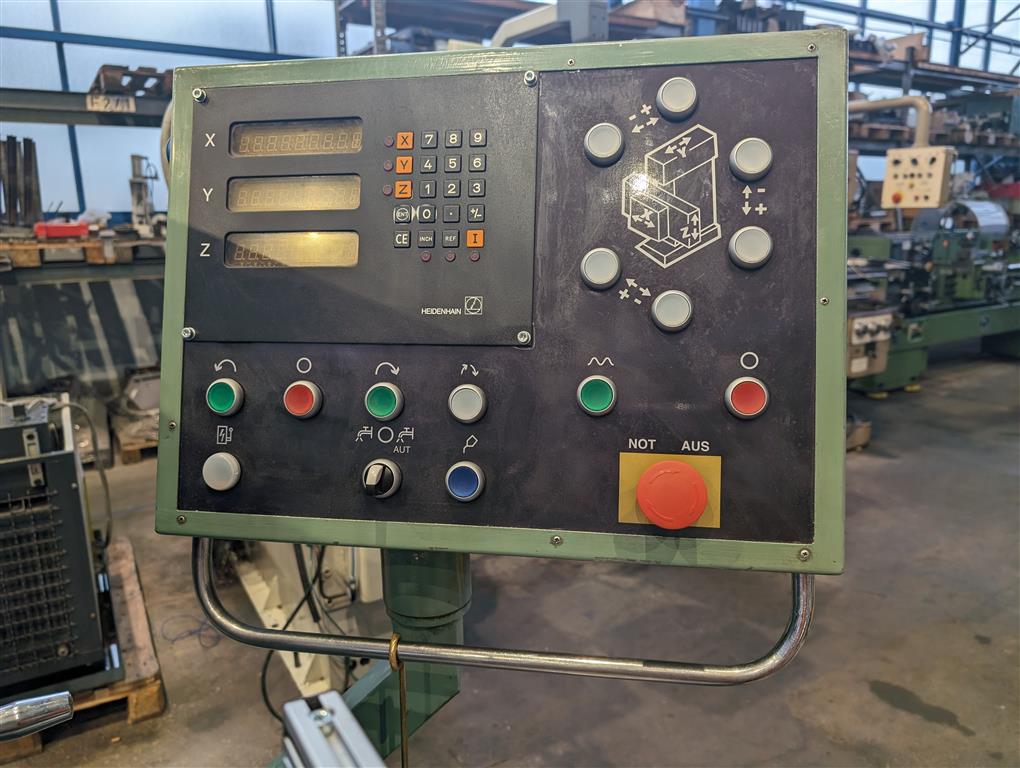

- Heidenhain control panel with extension arm
- chuck guard/chip guard (monitored)

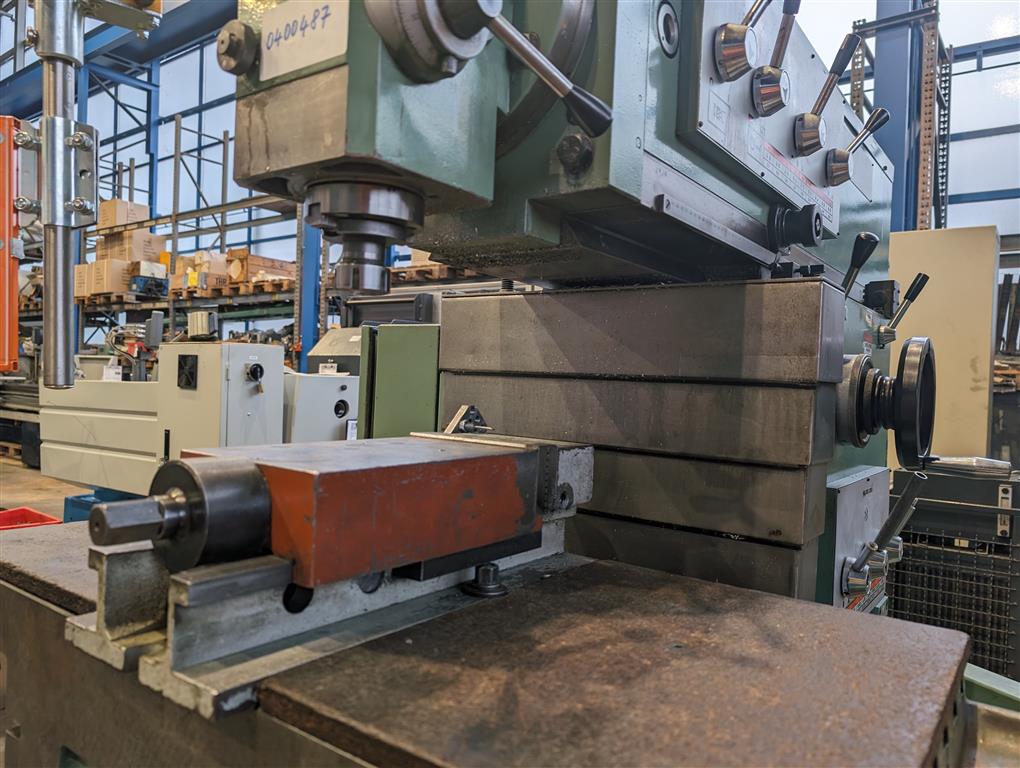

- Machine vice 160mm
- machine light
