Service Range:

• Complete production with heat treatment
• Turning
• Contract gear cutting, hobbing, gear shaping
• Gear measuring as contract work
• External cylindrical grinding
• Tooth flank grinding

Dimensions and Details:

• Turning up to Ø 400 Length 1000 mm
  - Gear hobbing straight / helical up to module 8 / up to Ø 320 mm / gear width max. 250 mm Workpiece length approx. 350 mm
  - Gear shaping straight and helical up to module 8 / max. Ø 600 mm/ max. gear width 200 mm
  Workpiece length 700 mm / up to helix angle +/ - 40 degrees
  - External cylindrical grinding up to Ø 250 and max. length 1000 mm
  - External and internal straight / helical tooth flank grinding (profile grinding)
  external up to Ø 600 mm up to max. profile depth 45 mm / toothing width
  +/- 45 degrees / workpiece length max. 900 mm
  internal from Ø 130 to 600 mm / up to module 5 / +/- 10 degrees
  - 3D coordinate measuring up to 600 mm
  - Gear measuring up to Ø 600 mm


Contact:

DVW Dreh- und Verzahnungswerk GmbH
Otto-Nußbaum-Straße 6
04420 Markranstädt
Deutschland / Germany

Tel. 034205/43962
Email: info@dvw-Leipzig.de

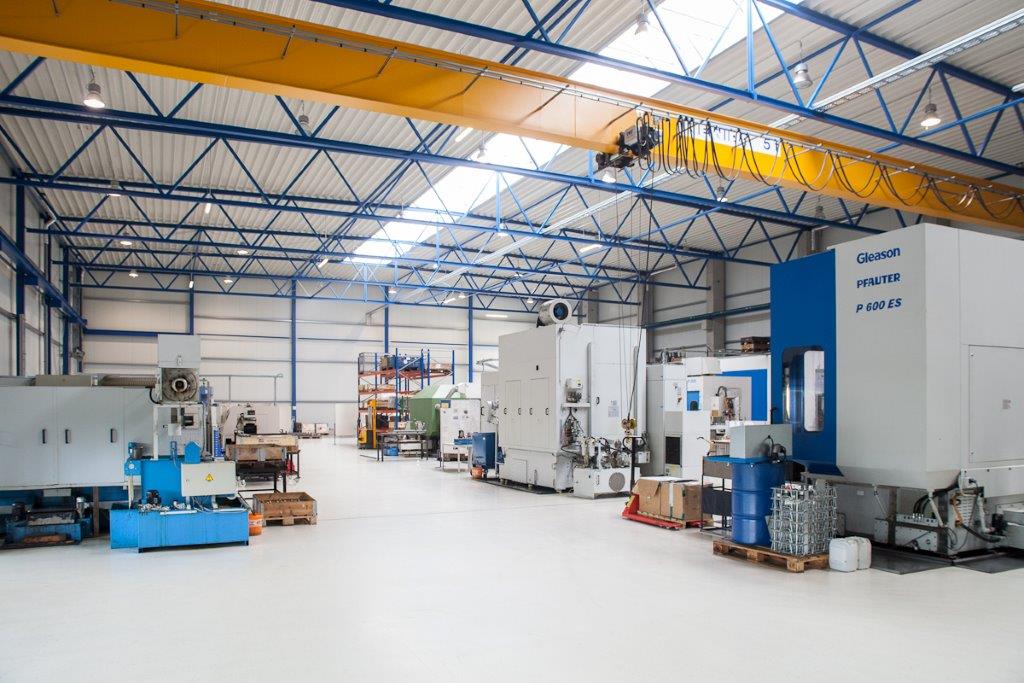

Pictures taken from our manufacturing hall:
