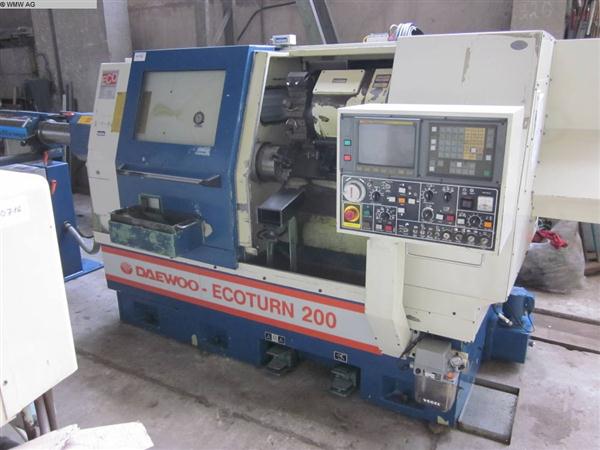

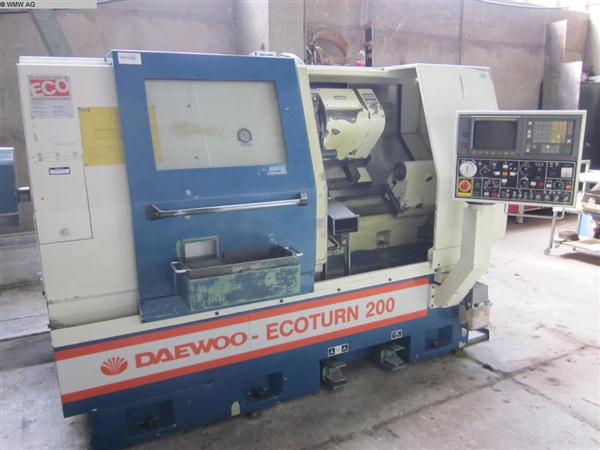

CNC Lathe
Offer
- stock-no.:
- 0300546
- type of machine:
- CNC Lathe
- make:
- DAEWOO
- model:
- Eco Turn 200
- year of manufacture:
- 1991
- type of control:
- CNC
- country of origin:
- Korea
- freight basis:
- EXW -free on truck
- storage location:
- Leipzig 2
- delivery time:
- immediately
- price:
- on request
technical details
- turning diameter:
- 200 mm
- turning length:
- 400 mm
- x-axis:
- plan 200 mm
- z-axis:
- läng 400 mm
- swing diameter over bed slide:
- 260 mm
- turning speeds:
- 20-3150 U/min
- control:
- Fanuc TC-F
- spindle bore:
- 45 mm
- tool turret:
- 12 Stationen
- rapid traverse X,Y:
- 5,10 m/min.
- total power requirement:
- 28 kW
- weight of the machine ca.:
- 4,3 t
- dimension machine approx.LxWxH:
- 2,9x2,0x1,9 m
- dimensions of the bar loader L-W-H:
- 4,9x1,0x1,5 m
additional information
Equipment:

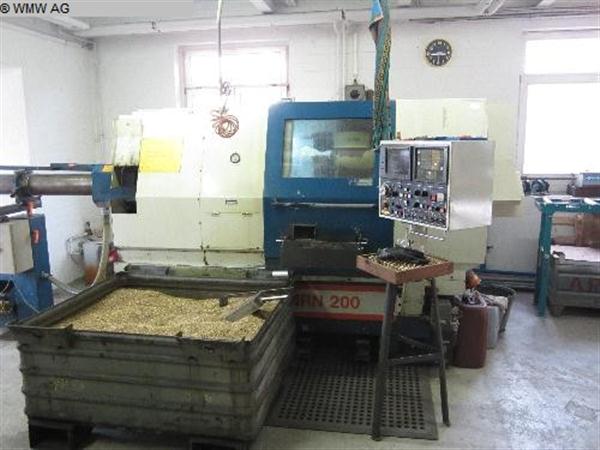

- bar loader Make IRCO Typ DS 44,8
- hydr. 3-jaw chuck dia=210mm
- coolant system
- workpiece catchment tank

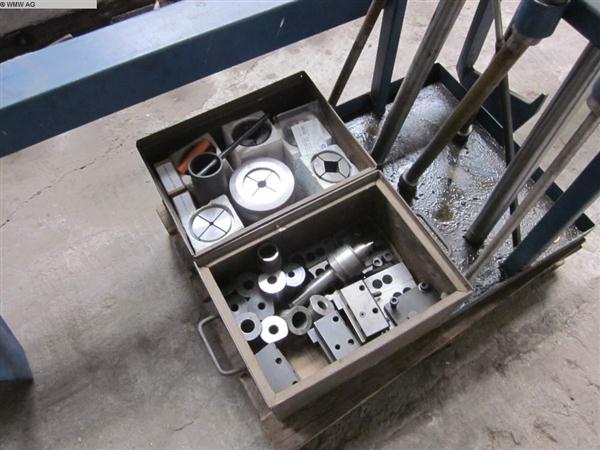

div. accessories
Machine can be demonstrated under power.
