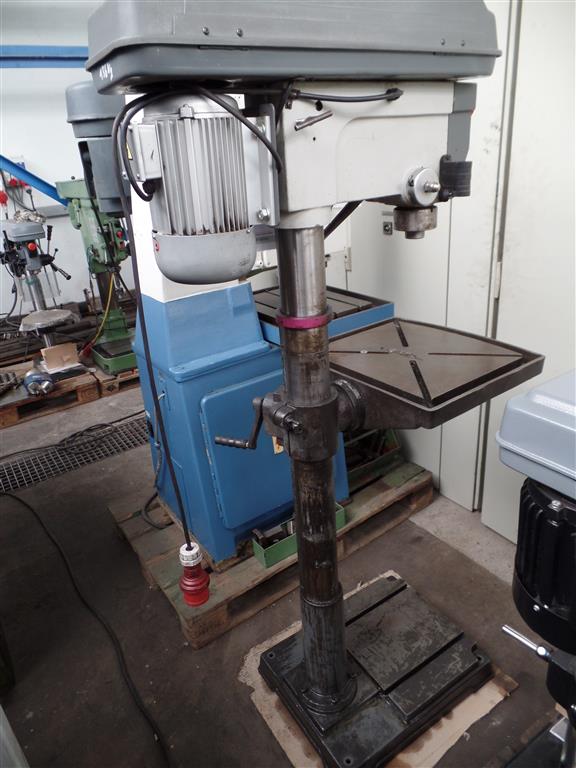

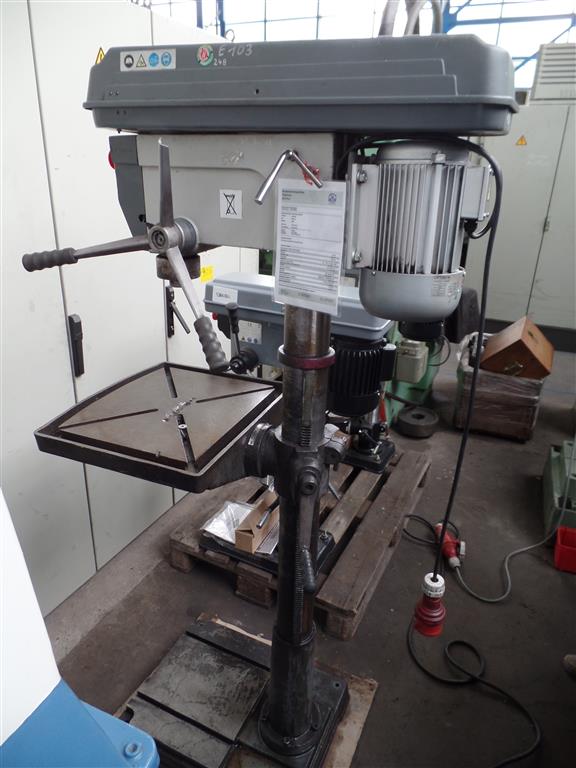

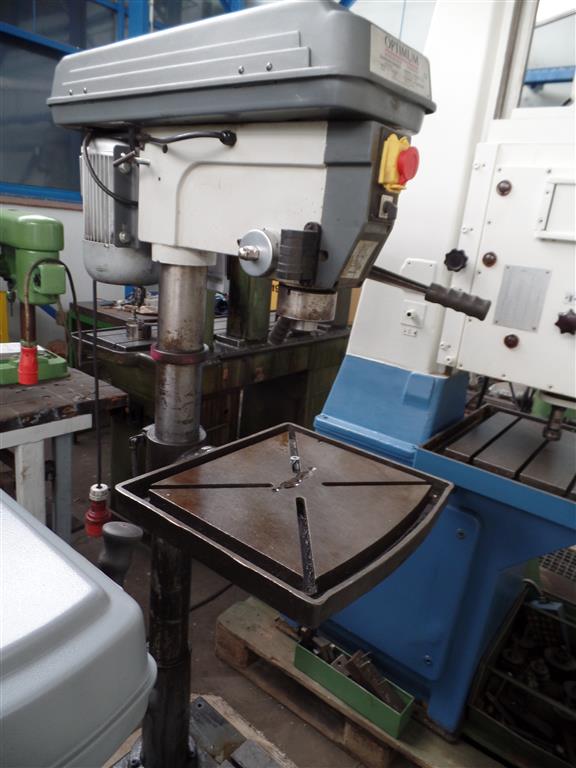

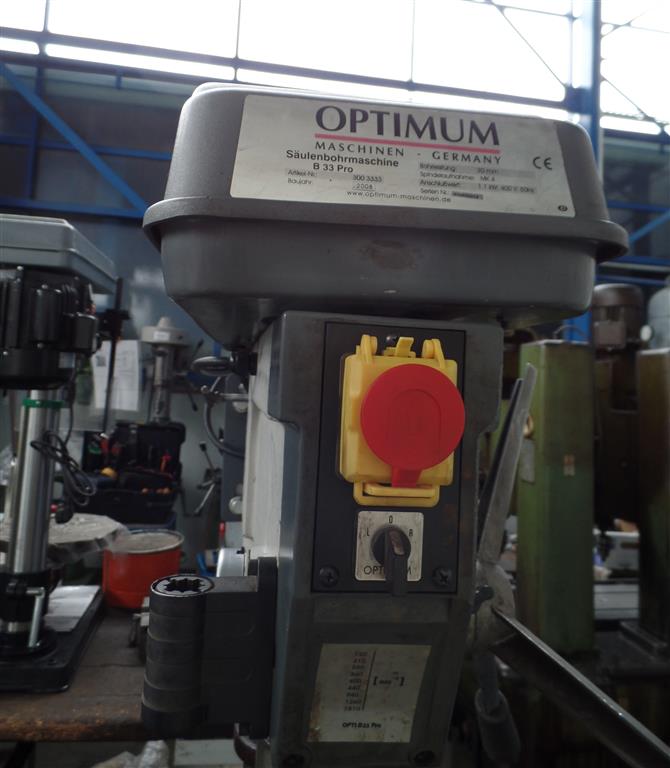

Pillar Drilling Machine
Offer
- stock-no.:
- 0200663
- type of machine:
- Pillar Drilling Machine
- make:
- Optimum
- model:
- B33 Pro
- year of manufacture:
- 2008
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck
- storage location:
- Leipzig 1
- delivery time:
- on request
- price:
- on request
technical details
- bore capacity in steel (diameter):
- 30 mm
- throat:
- 254 mm
- bore stroke:
- 120 mm
- taper MK:
- 4
- speeds:
- 120 - 1810 / 9 step U/min
- feed::
- manuell
- distance between table/spindle:
- max. 695 mm
- distance between floor-plate and spindle::
- 1180 mm
- boring table adjustment:
- 530 vertical mm
- Bore table:
- L:475 xB:425
- Bore table:
- neigbar 45° rechts/links mm
- boring table adjustment:
- 360° Grad
- base plate surface area:
- L:410 x B:325 mm
- Column diameter:
- 92 mm
- total power requirement:
- 1,1 kW
- weight of the machine ca.:
- 136 kg
- dimension machine approx.LxWxH:
- 0,9x0,5x1,75 m
additional information
clockwise / counterclockwise switchable (thread cutting)
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
