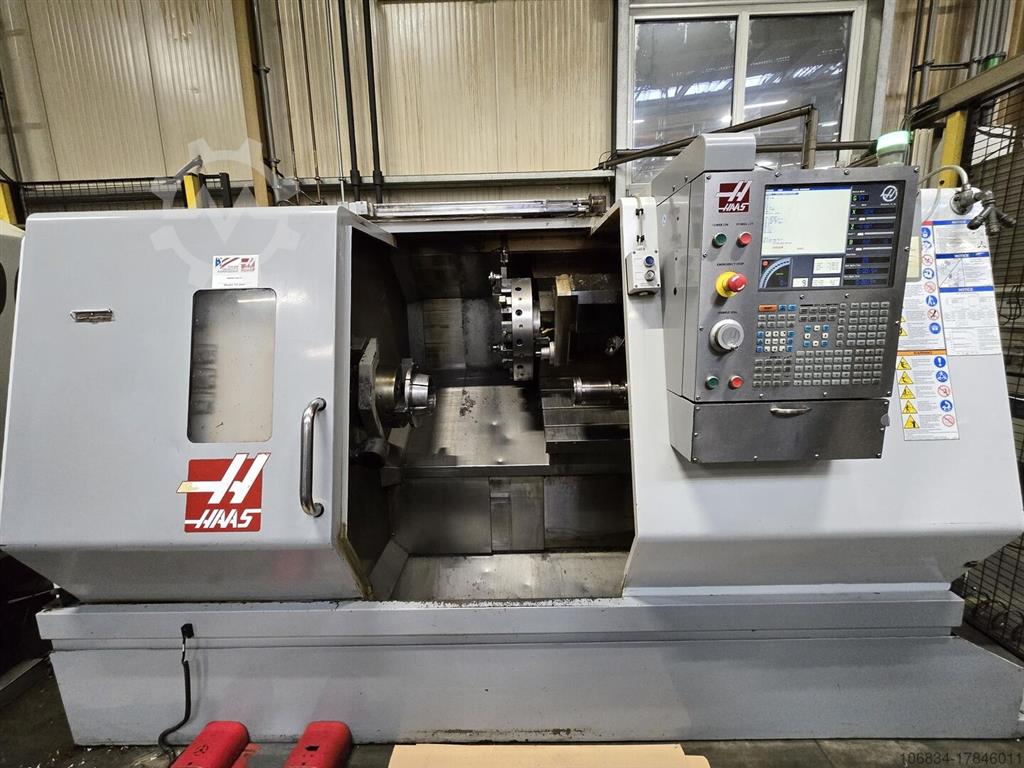

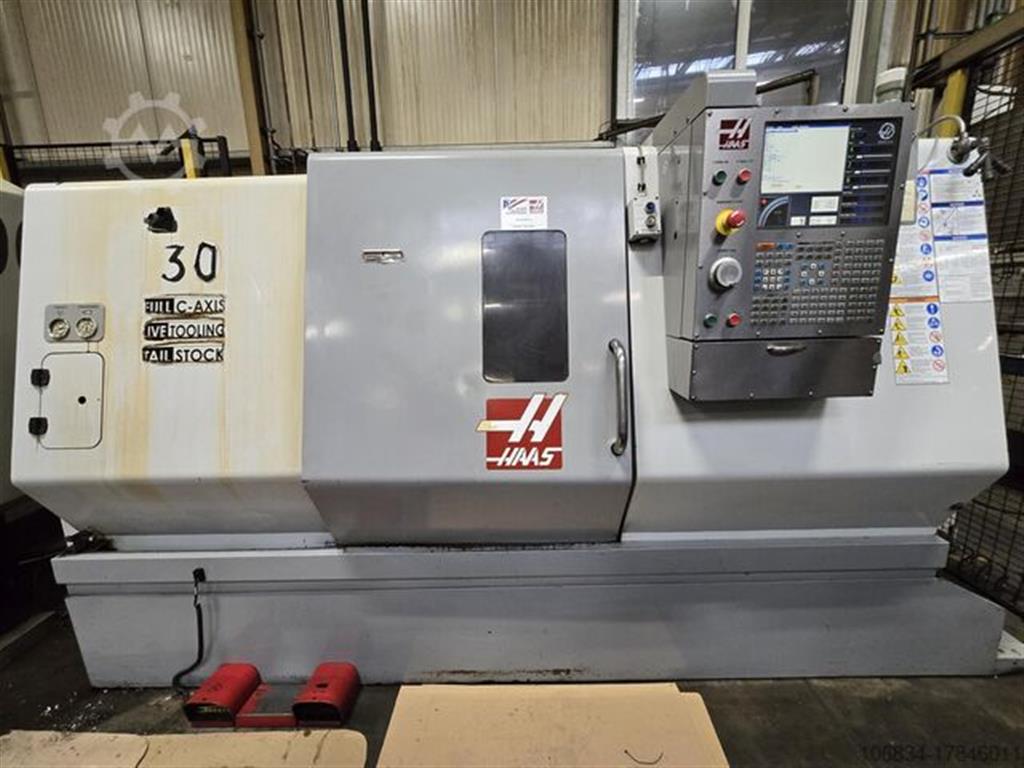

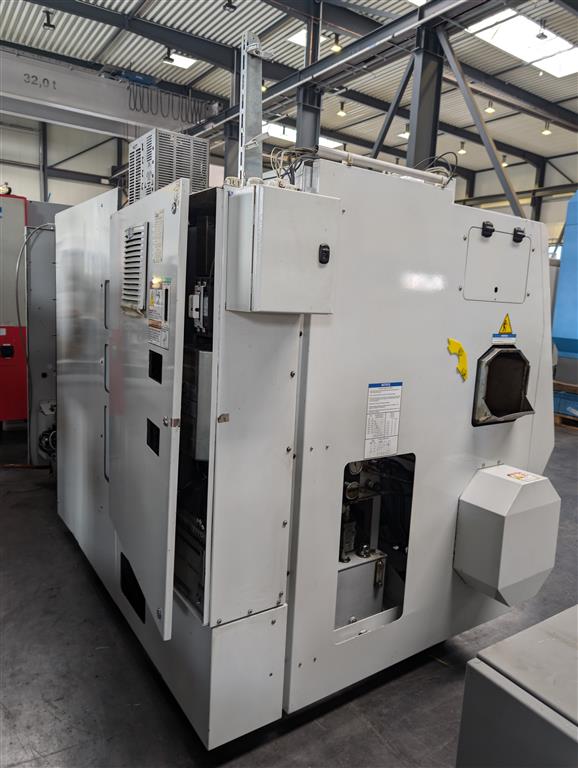

CNC Lathe
Offer
- stock-no.:
- 0305010
- type of machine:
- CNC Lathe
- make:
- HAAS
- model:
- SL 30
- year of manufacture:
- 2007
- type of control:
- CNC
- country of origin:
- USA
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 5
- delivery time:
- by arrangement
- price:
- on request
technical details
- turning diameter over bed:
- 762 mm
- turning dia. over face-slide:
- mm
- turning length:
- 850 mm
- facing movement (x-axis):
- 287 mm
- longitudinal traverse (z-axis):
- 864 mm
- control:
- CNC Haas
- spindle passage:
- 76 mm
- revolution per minute:
- max. 3400 steples U/min
- tailstock taper ISO:
- Ø 290
- tailstock quill stroke:
- ja mm
- tool turret - number of stations:
- 12
- electrics - voltage/frequency:
- 360/ 400 V - 50-60 Hz V/Hz
- feed::
- mm/min.
- operating hours - idle run:
- h
- total power requirement:
- Weight approx.:
- 6,3 t
- dimension machine approx.LxWxH:
- m
- transport measurements machine:
- ca. 3,4 x 2,1 x 2,4 m
- dimension swarf conveyor LxWxH:
- m
additional information
The machine is currently in the technical department.
Equipment:
3-jaw power chuck KITAKAWA Ø 250mm (without jaws) 4200 rpm. can be operated via 2-way foot switch
