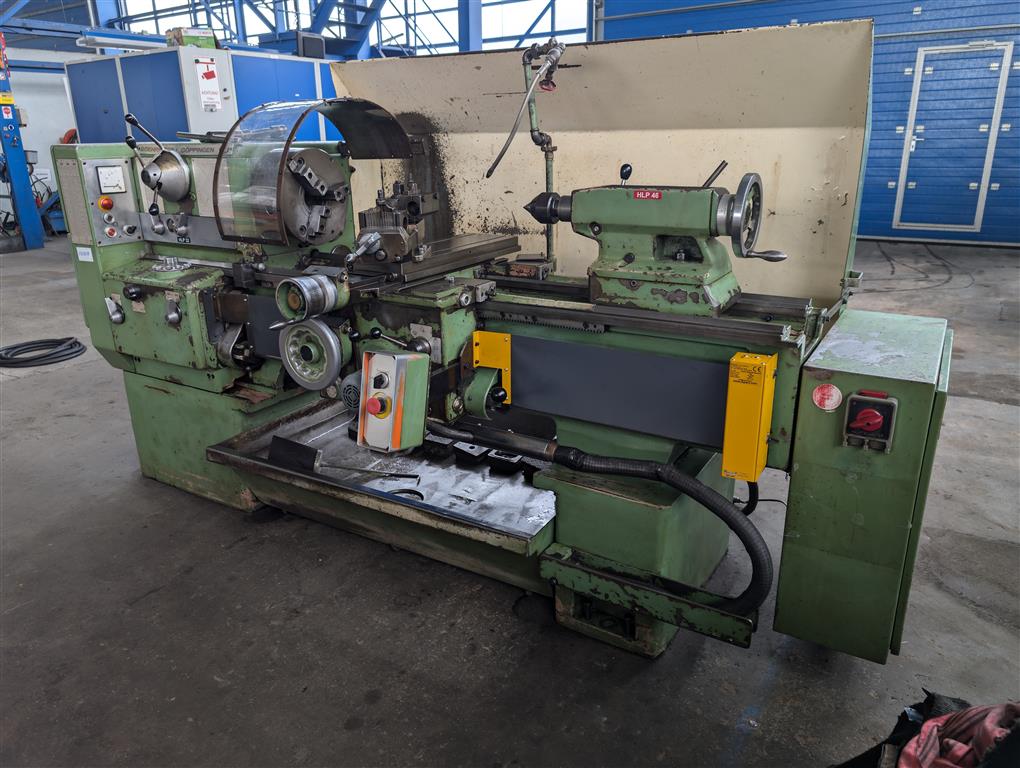

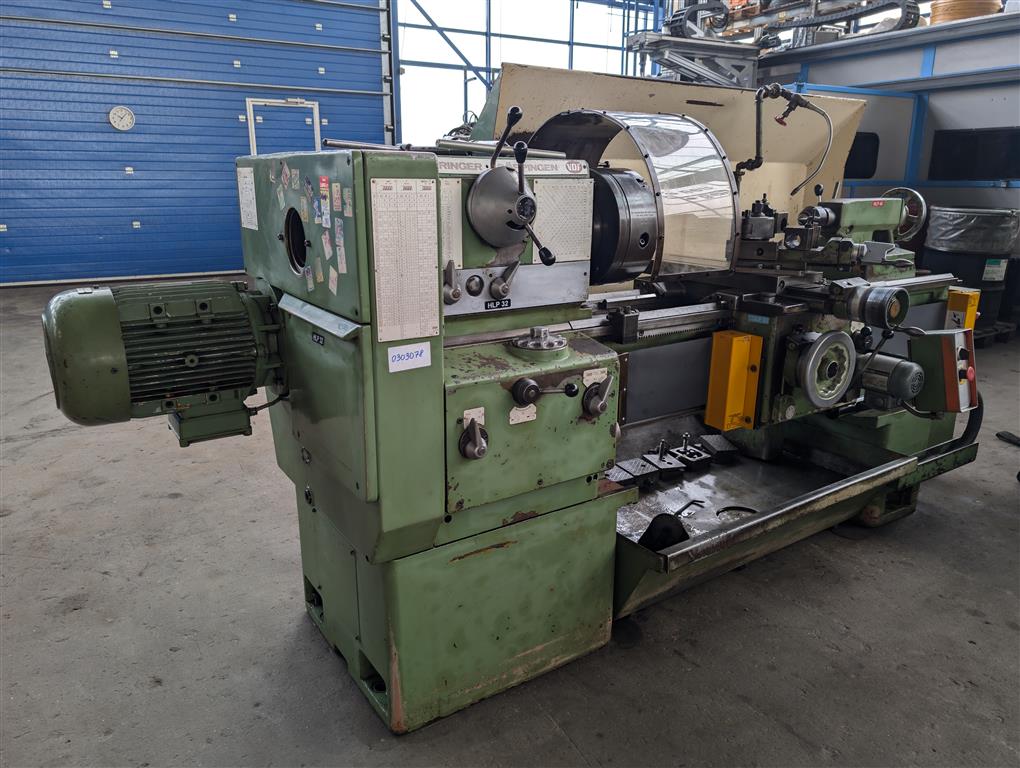

Center LatheCenter Lathe VDF BOEHRINGER D 480

Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480Center Lathe VDF BOEHRINGER D 480

Offer

stock-no.:
0303078
type of machine:
Center Lathe
make:
VDF BOEHRINGER
model:
D 480
year of manufacture:
1975
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
GOG Bitterfeld
delivery time:
immediately
price:
on request

technical details

turning diameter over bed:
500 mm
turning diameter over support:
260 mm
turning length:
950 mm
center height measured in bed:
220 mm
centre distance:
1000 mm
revolution per minute:
11,2 - 2240 / 24 step U/min
spindle bore of work spindle:
62 mm
tailstock quill adjustment::
210 mm
longitudinal feeds::
0,045 - 1,6 mm/U - 32 step
cross feed:
0,02 - 0,71 mm/U - 32 step
Rapid feed X axis:
m/min.
total power requirement:
11 kW
weight of the machine ca.:
k.A. t
dimension machine approx.LxWxH:
3,3 x 1,2 x 1,6 m

additional information

The machine is in a very good condition (very quiet spindle run) in Leipzig.
Top slide rotatable 360°

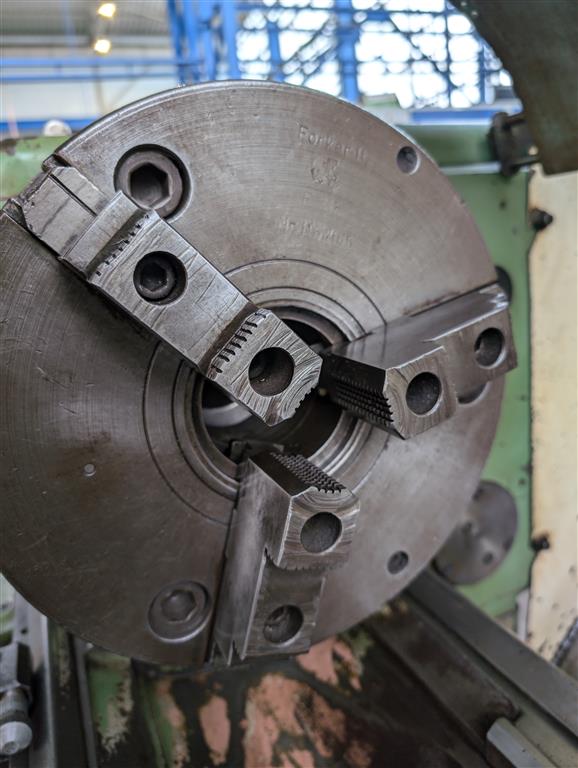

3-jaw lathe chuck Ø 315mm with jaws (inside/outside) for speed 2000 rpm.
Thread cutting: metric, modular thread, inch

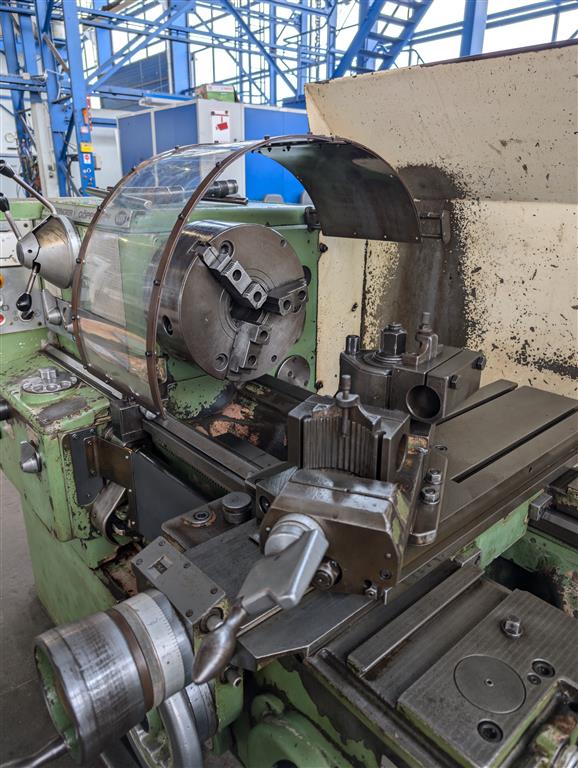

Chip protection wall
Chuck protection (mechanical)

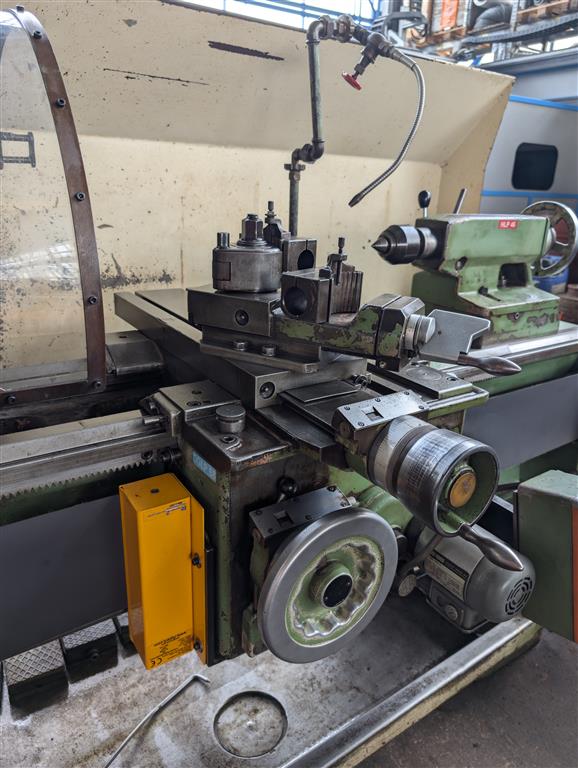

MULTIFIX steel holder with Ø 40mm drill steel holder
Chip collection tray
Coolant supply with pump
Protective device for lead screw
Machine base

UVV is pre-equipped ( UVV=Accident Prevention Regulations)
