Pillar Type Swivelling Crane
Offer
- stock-no.:
- 1202053
- type of machine:
- Pillar Type Swivelling Crane

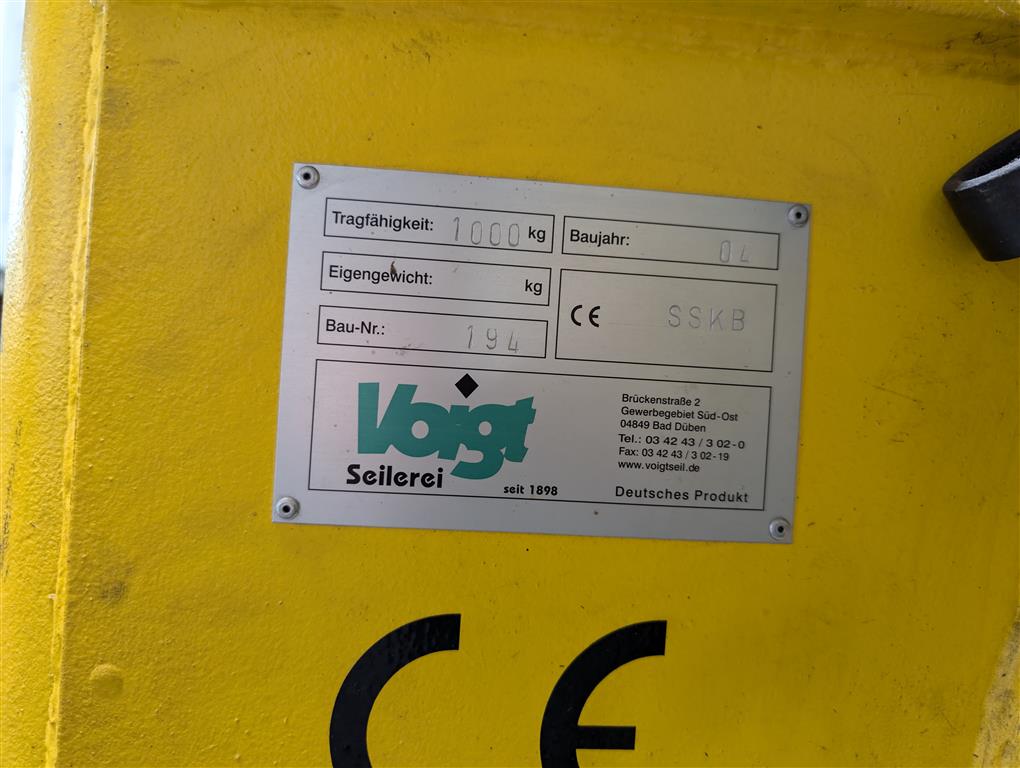

- make:
- VOIGT
- model:
- Liftket Star 071/53 1000/2-5/1,25 SSK 1t x 7,17
- year of manufacture:
- 2004
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 5
- delivery time:
- by agreement
- price:
- on request
technical details
- lifting capacity:
- 1,0 t
- lift:
- mm
- span width:
- 7170 mm
- Arm length:
- Säule - Kranhaken: 7.000 mm
- height lower edge cantilever arm:
- ca. 1.550 mm
- cantilever arm length from center column:
- mm
- column diameter:
- Ø 400 mm
- rotation:
- +/- 100 °
- total power requirement:
- 1,1 kW
- weight:
- ges. ca. 1450 kg
- travel of hook:
- ca. 5000 mm
additional information
Classification H2, B3

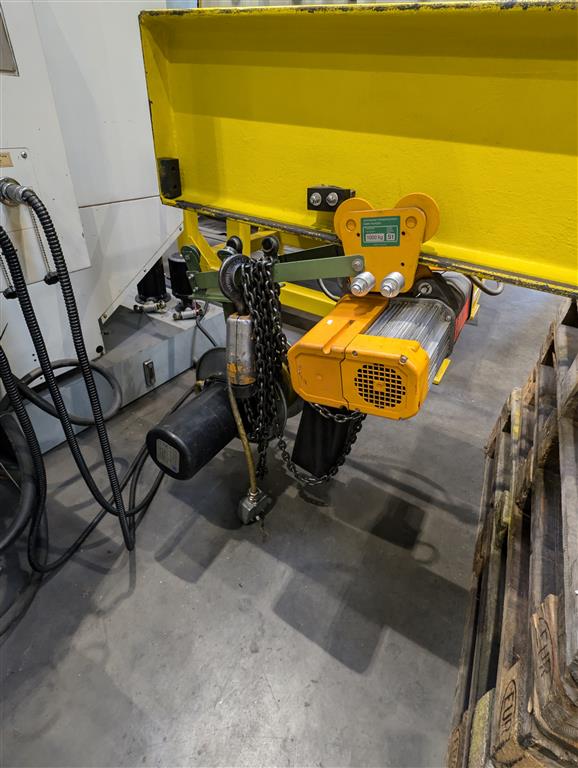

Hoist Star Liftket 1.0 to type 071/53; lifting speed 5/1.25 m/min; load chain/round link chain DIN 5684-0 7.2x21 - 2/1; manual trolley travel; travel distance hoist 5,600 mm,
External control, Hubhöhe 2 m

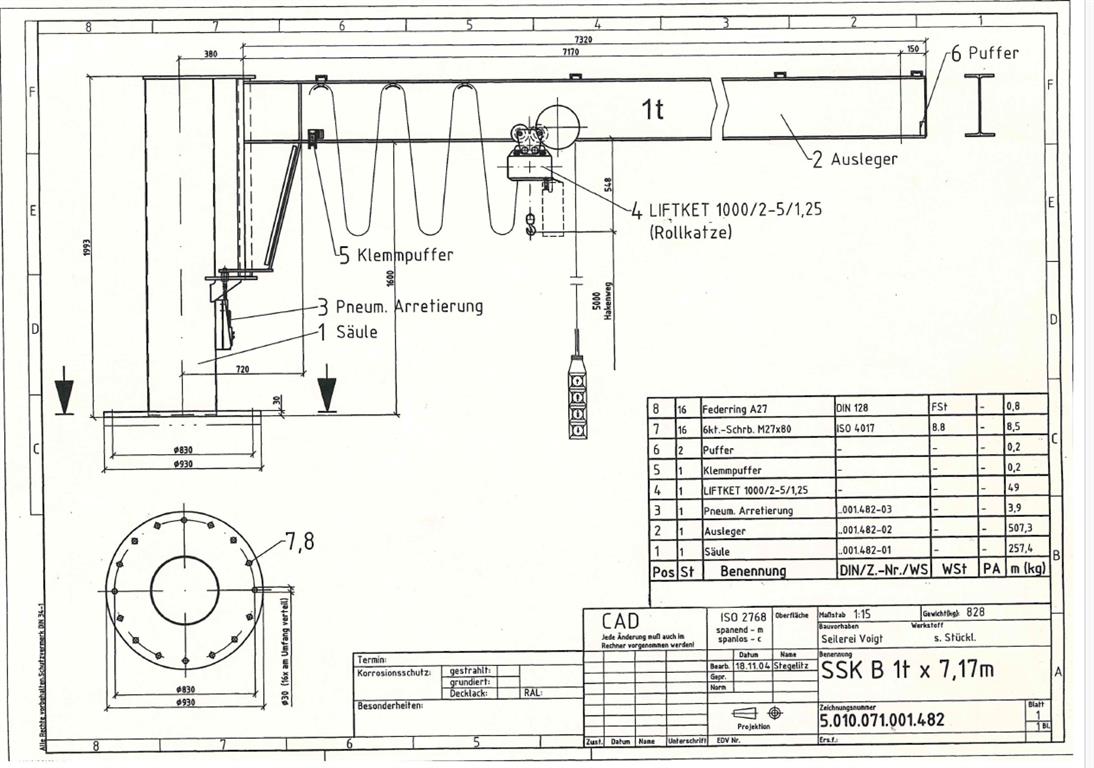

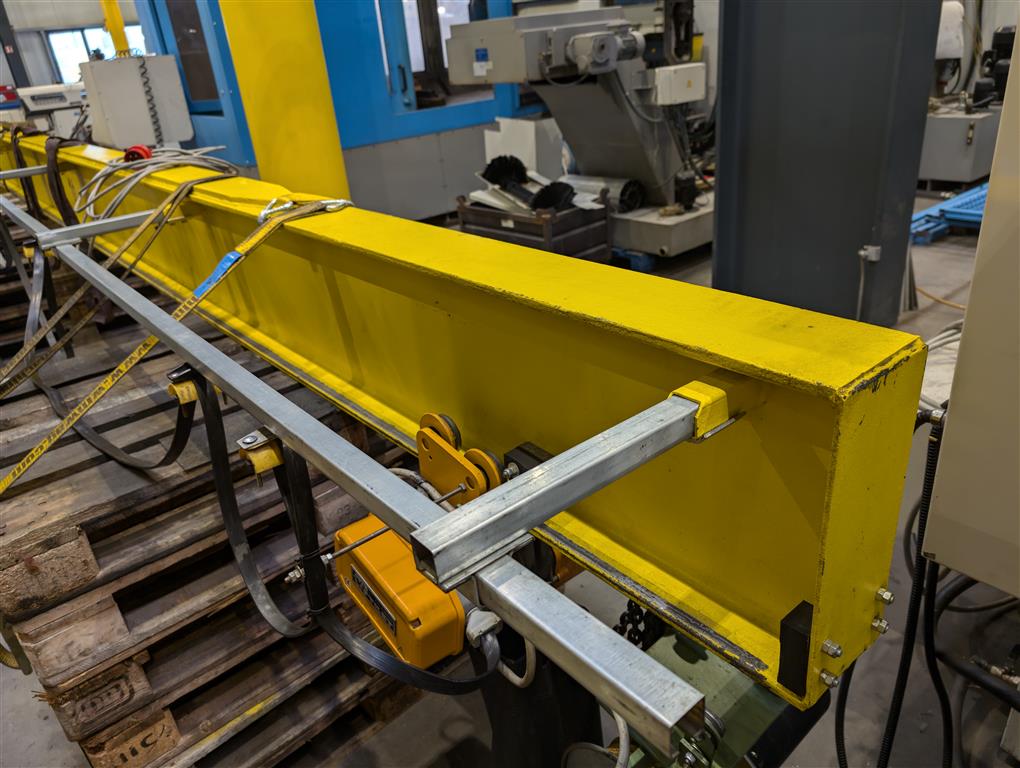

Boom length: 7,300 mm

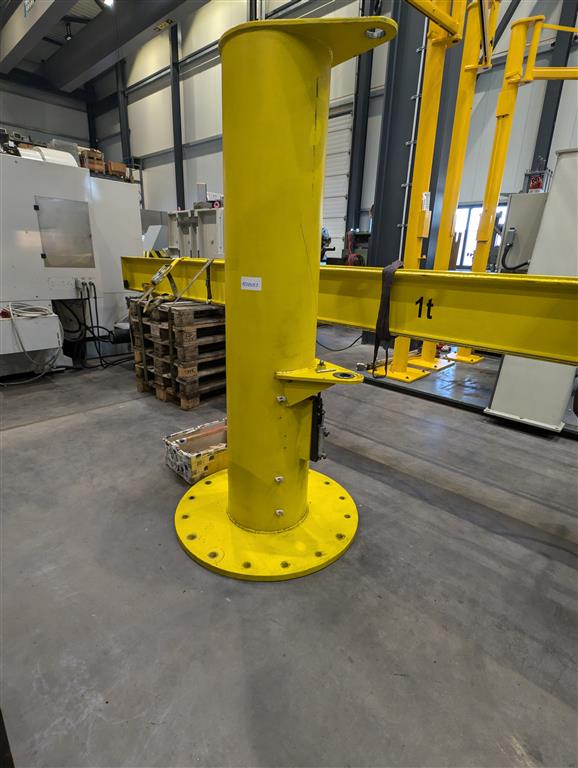

Column height 1,950 mm

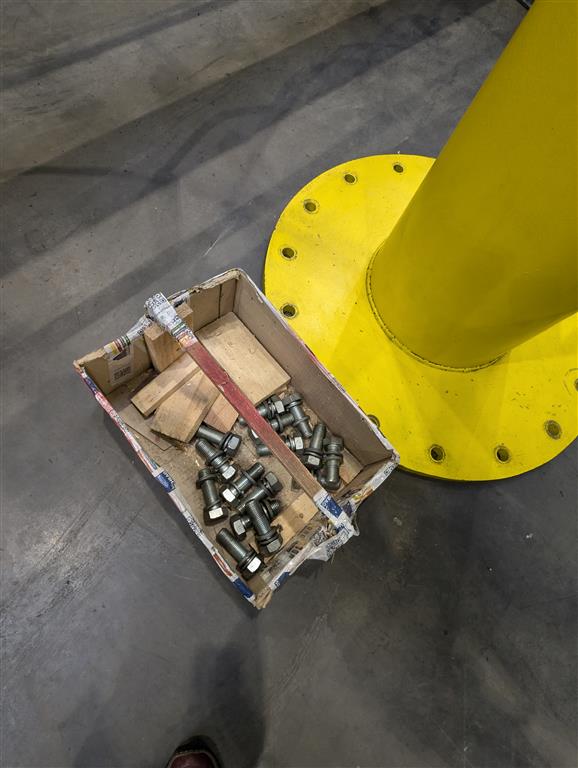

Column base plate Ø 915 mm with 16x Ø 30 mm holes distributed around the circumference
incl. 15 foot clamping screws
incl. KIPP pneumatic push rod tensioner
i.D.
