Offer
- stock-no.:
- 1300228
- type of machine:

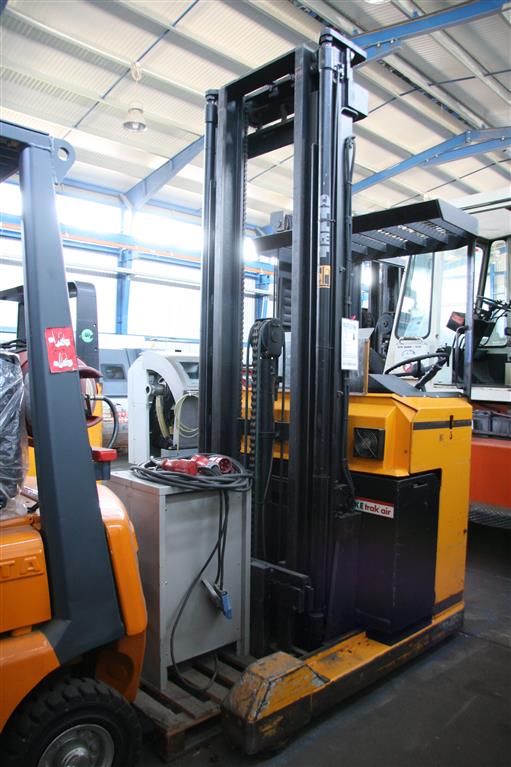

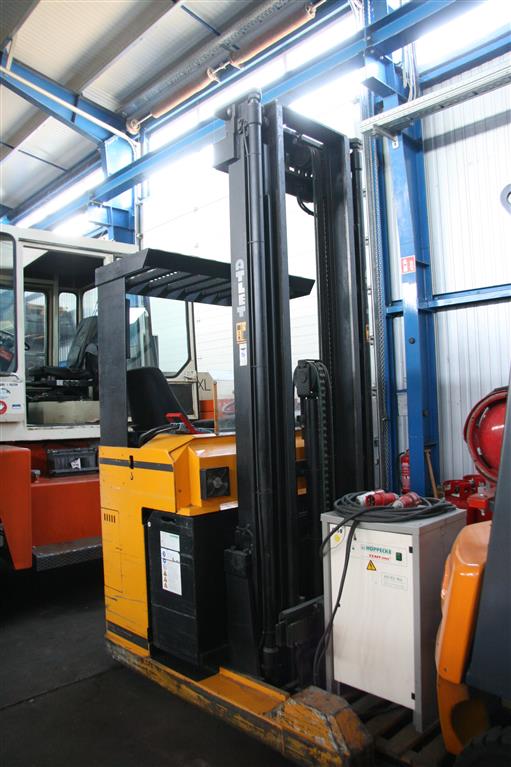

- Fork Lift Truck - Electric
- make:
- ATLET U 141
- model:
- 141DTPVR0670/U
- year of manufacture:
- 1990
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 3
- delivery time:
- immediately
- price:
- on request
technical details
- weight max. in kg:
- 1400 kg
- lift:
- 6690 mm
- fork length:
- 1200 mm
- weight of the machine ca.:
- 3,4 t
- dimensions of the machine ca.:
- L:2,45x B:1,3 x H:2,3 m
additional information
free lift tower fork lift truck, side fork lift.
loade center:t 600mm
with side shifter (lift =150mm)
Battery model :Hoppecke / AT 0099 mit 48V
details of the load frame:
overall height: lift frame in = 2800mm
lifting height = 6690mm
free lifting = 2270mm
overall height -lift frame out = 7190mm
mast inclination rear
ride height = 90mm
forther details :
feed Lift frame 530mm
fork carriage length: 820mm
ready to start
own requirement
Battery: 48V
in working condition.
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
