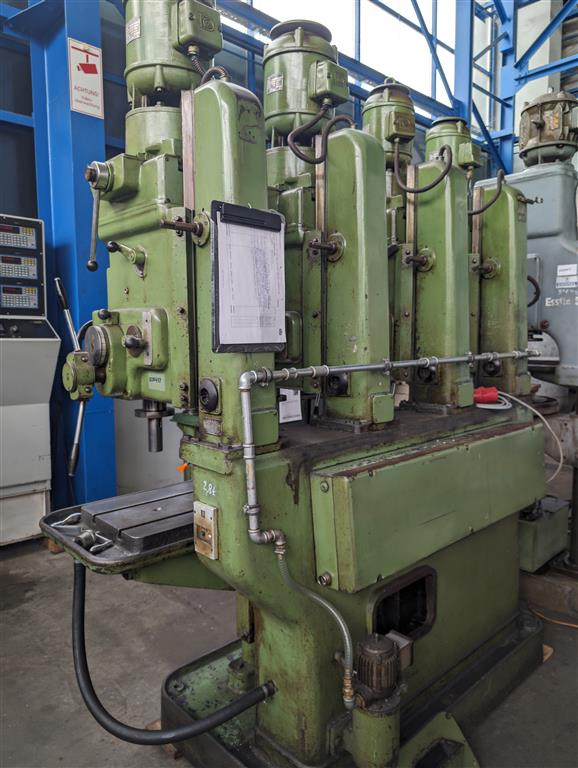

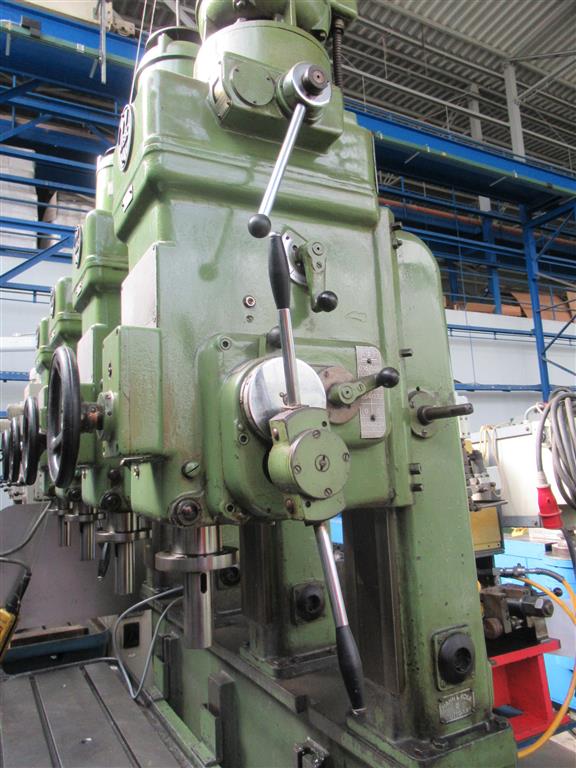

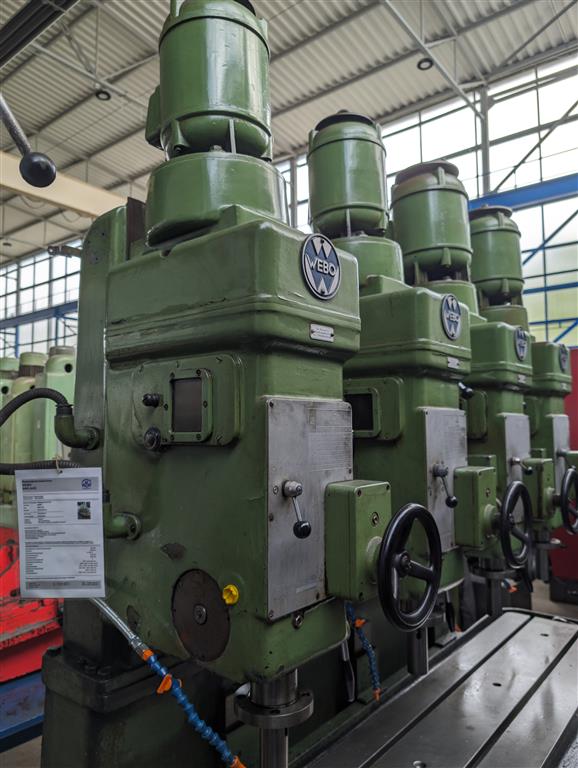

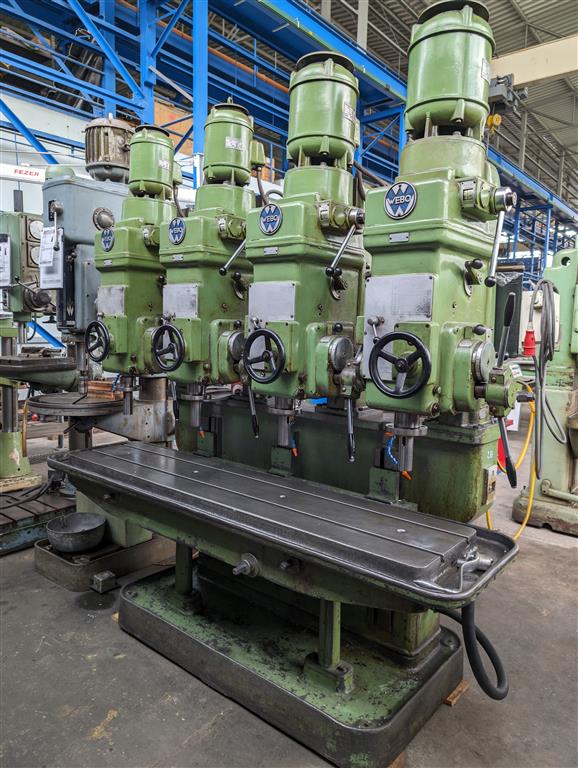

Gang Drilling Machine
Offer
- stock-no.:
- 0200439
- type of machine:
- Gang Drilling Machine
- make:

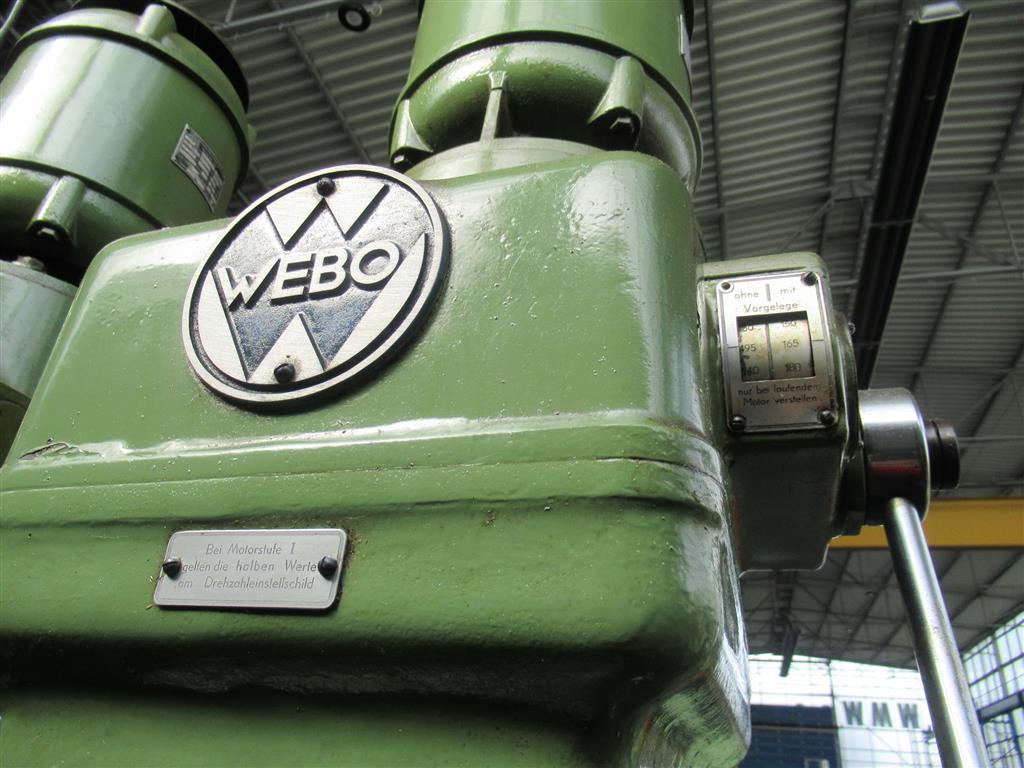

- WEBO
- model:
- BKR
- year of manufacture:
- nicht bekannt
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 1
- delivery time:
- immediately
- price:
- on request
technical details
- number of spindles:
- bore capacity in steel (diameter):
- 30 mm
- bore stroke:
- 180 mm

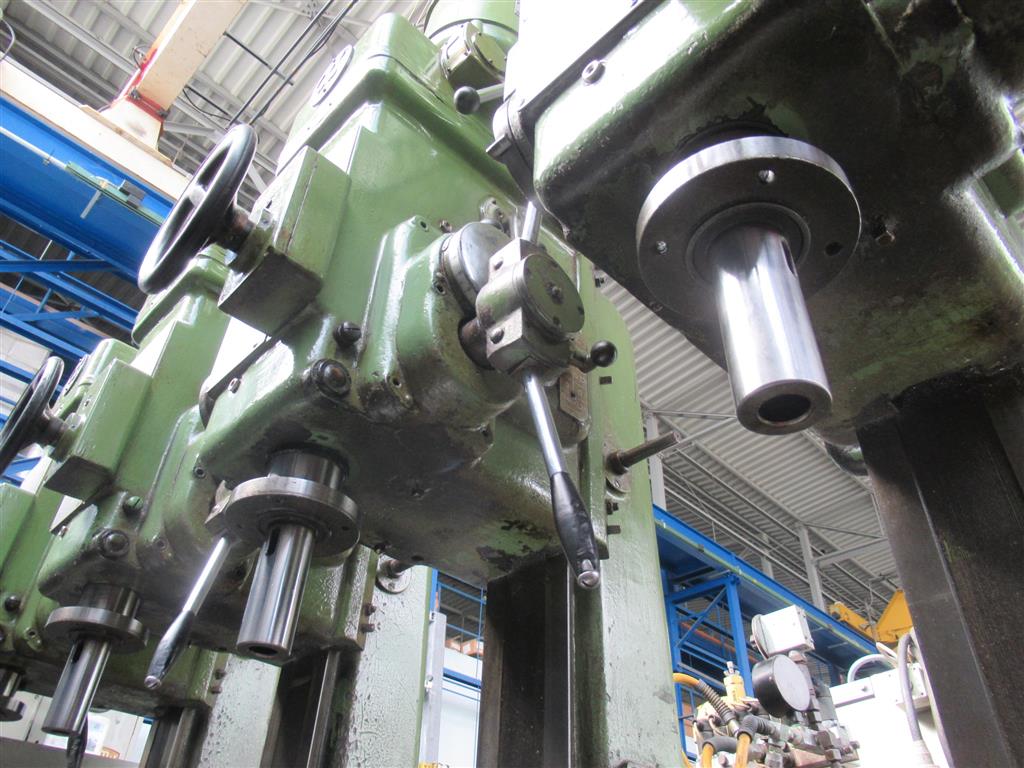

- drill spindle - Morse Taper:
- 4 x MK 3
- spindle throat:
- 310 mm
- spindle distance:
- 490 mm
- number of drilling stations:
- 4
- headstock adjustment:
- 300 (manuell) mm
- feed::
- 0,08 - 0,64 / 6 step mm/U

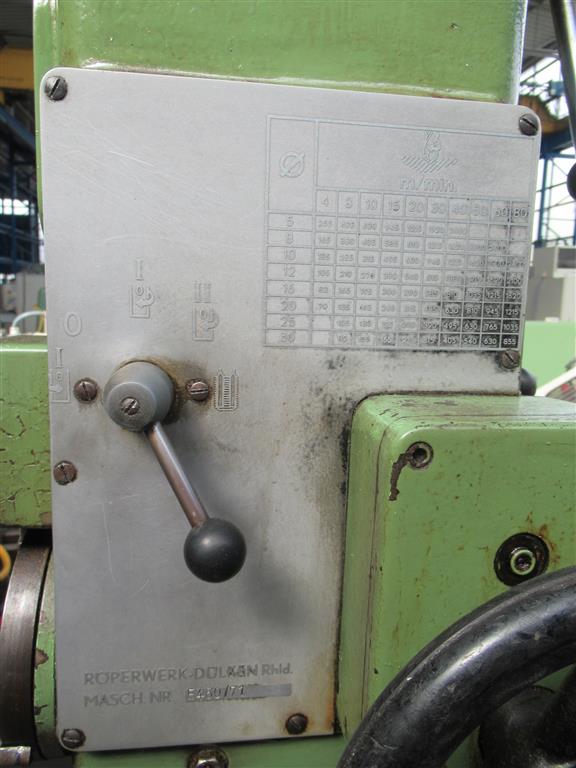

- spindle speed::
- 50 - 1.215 / 19 step U/min
- distance between table/spindle:
- max./min.: 500 / 200 mm
- table surface area:
- 1820 x 395 mm
- table adjustment:
- Höhe: 300 (manuell) mm
- total power requirement:
- 4x 1,5 (6,0 kW) kW
- weight of the machine ca.:
- 2,8 t
- dimension machine approx.LxWxH:
- 2,1 x 1,1 x 2,75 m
additional information
Further technical data:
-Center distance of the drilling spindle 490mm
-thread cutting on drilling columns 3 and 4 with automatic switchover
-All drilling spindles run with clockwise and counter-clockwise rotation
-spindle countershaft and variator
-with coolant system
